LocalHome > Music-Control-Box  Detial Data

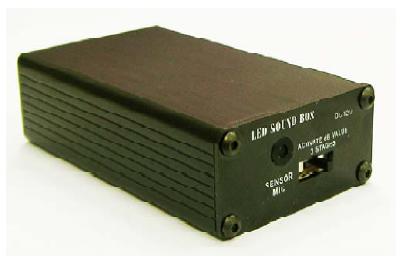

Music-Control-Box
Model Music-Control-Box
Introduce Introduction:
The LED Sound Box is a controller which can control many kinds of LED light bars. This controller offers color variation and brightness adjustment to RGB LED light bars. It is able to control the brightness level by different sound volumes and can also define different colors by RGB current control. With all the control capabilities and a very user-friendly interface, LED Sound Box will be a powerful tool in all kinds of entertainment applications.
  Detail description
Features:
1. Three levels of brightness control.
2. R/G/B color control.
3. Power indicator and shiny aluminum case.
Application Description:
Product No.ESSE-12VMICA-01
SizeL x W x H = 96.5 x 55 x 27.5(mm)
Operating Temp-40 ~ 85
Storage Temp-40 ~ 100
Applied Power SupplyPower In : 110~240 VACPower Out: 12V VDC1A~ 4A
Activate Volume ValueStage I: 75~90Stage II: 80~100Stage III: 90~115(dB)
Note:
*1. The spec of the power supply is recommended on this product.
*2. Choose one suitable stage to match the volume of ambient music.
Operating Notice:
1. The power supply used for the product should be under 4 amps with 12VDC.
2. The total power consumption of connected LED modules should be under 36 watts.
3. All LED modules are driving with 12V in voltage by the box, and must have common anode, especially for the RGB one.
4. Make sure that the microphone is very close the source of the sound source, e.g. Speaker.
Function Instruction:
1.INPUT POWER12V DC, 3~ 4A power supply with = 2.5mm power jack.
2.POWER INDICATORGreen light is on when power inputs successfully.
SENSOR MICThe microphone is used to detect the sound from the environment.
Activate Volume ValueChoose the correct sensitivity volume level in dB for different input sound source.
